JEREPET 520GPH DC Water Pump with Controller – 24V Inline Return

Overview

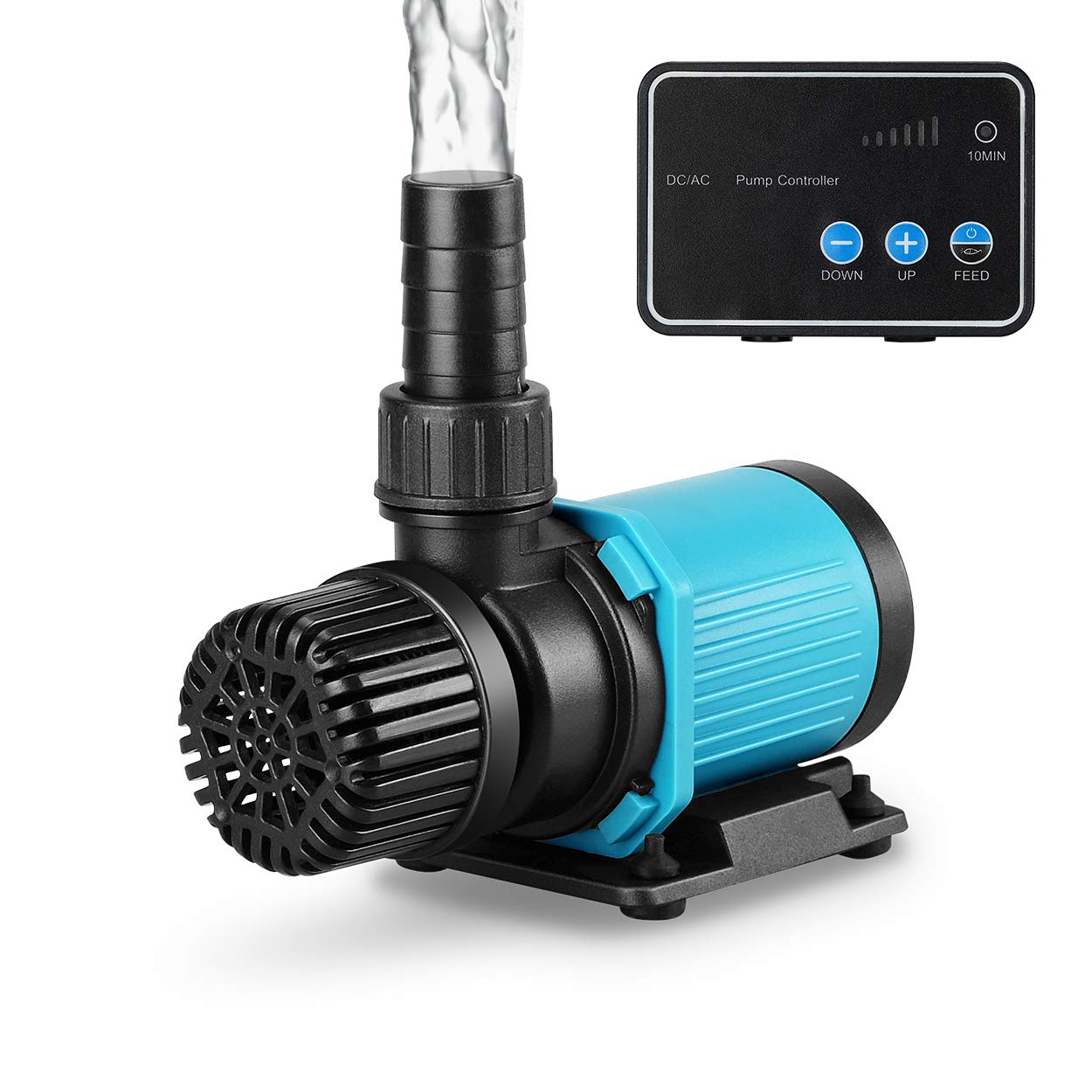

Meet the JEREPET 520GPH DC Water Pump with Controller. This compact, 24V pump is built for versatility across aquariums, fountains, waterfalls, hydroponics, and ponds. With a max flow of 520 GPH and a 10 ft lift, it supports a wide range of setups while maintaining a small footprint.

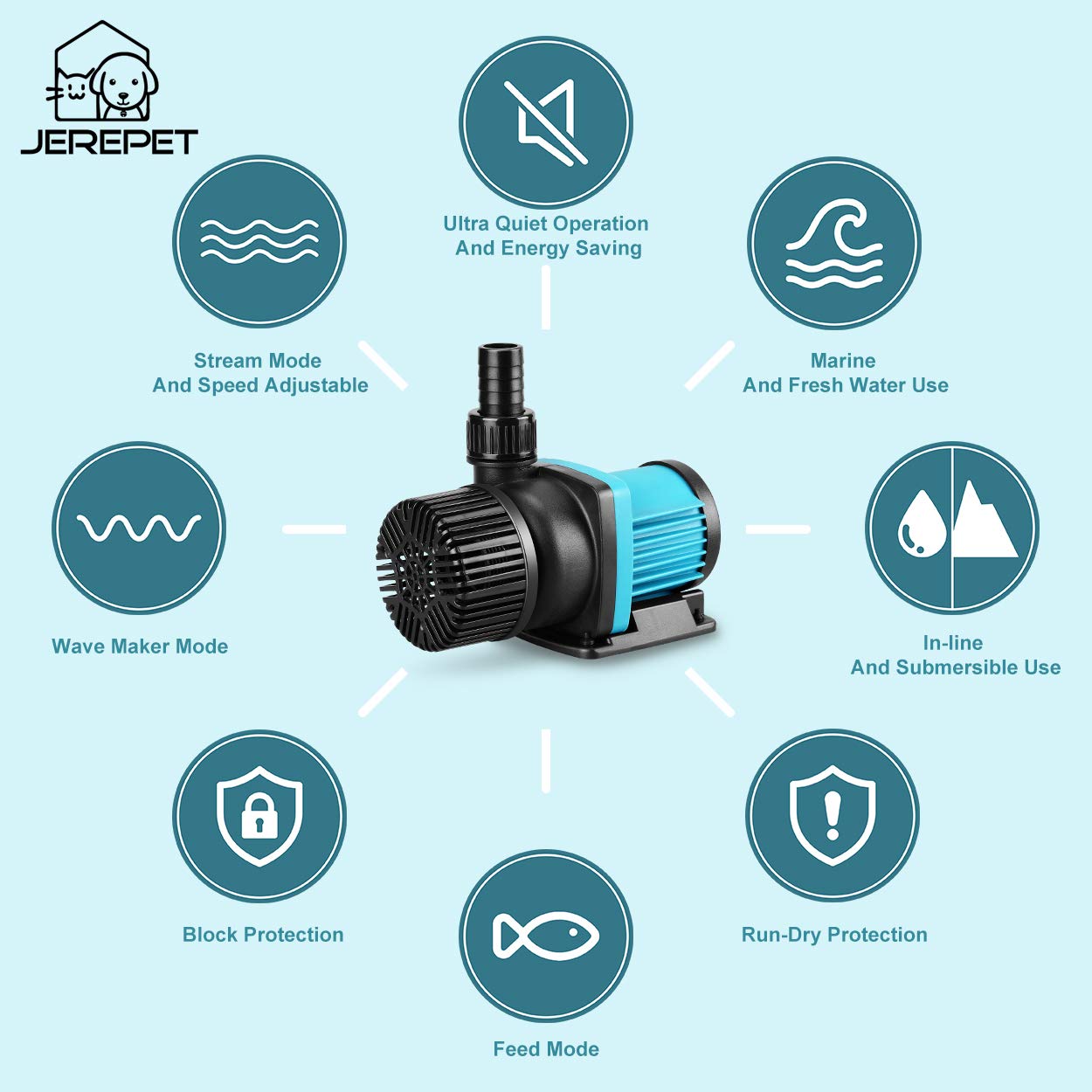

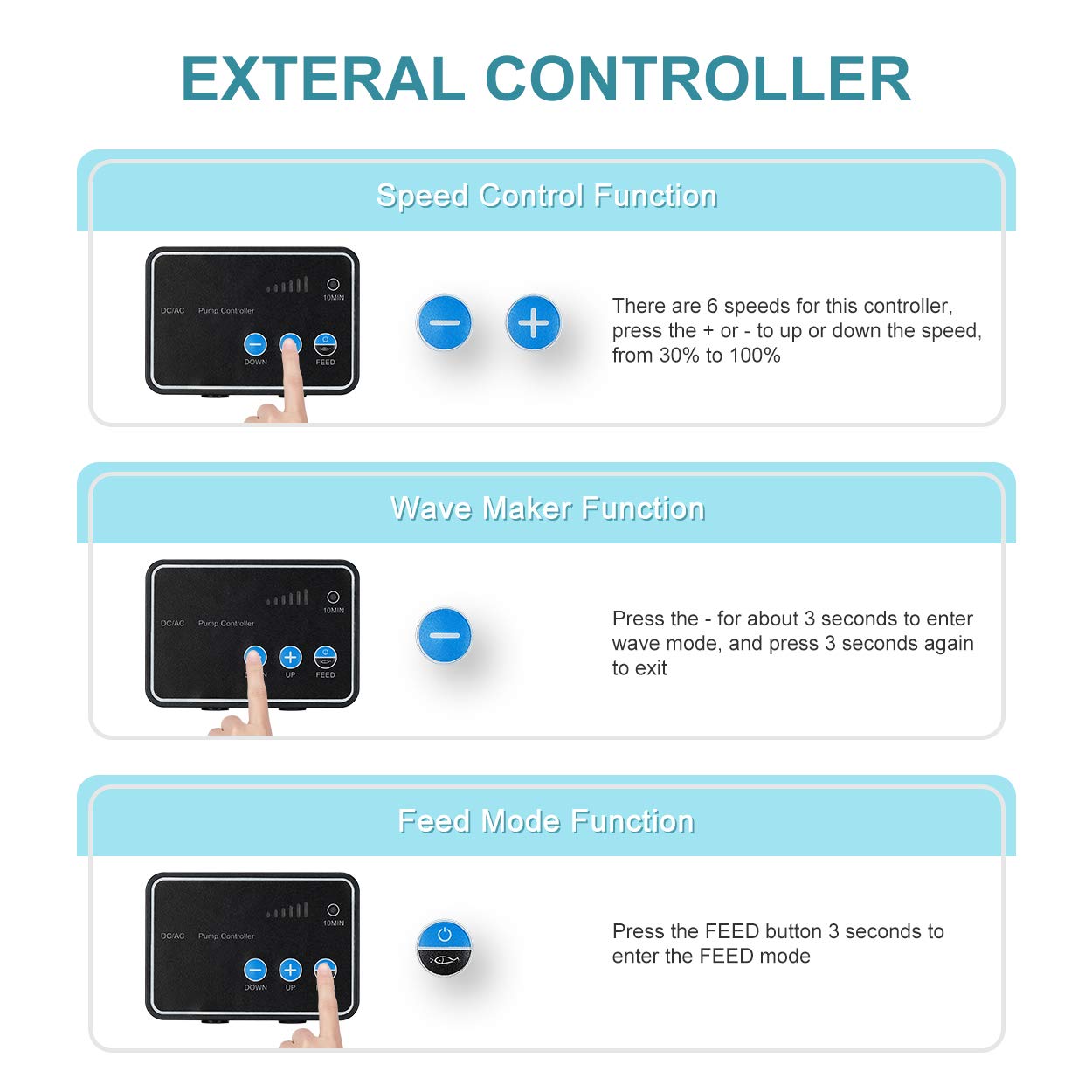

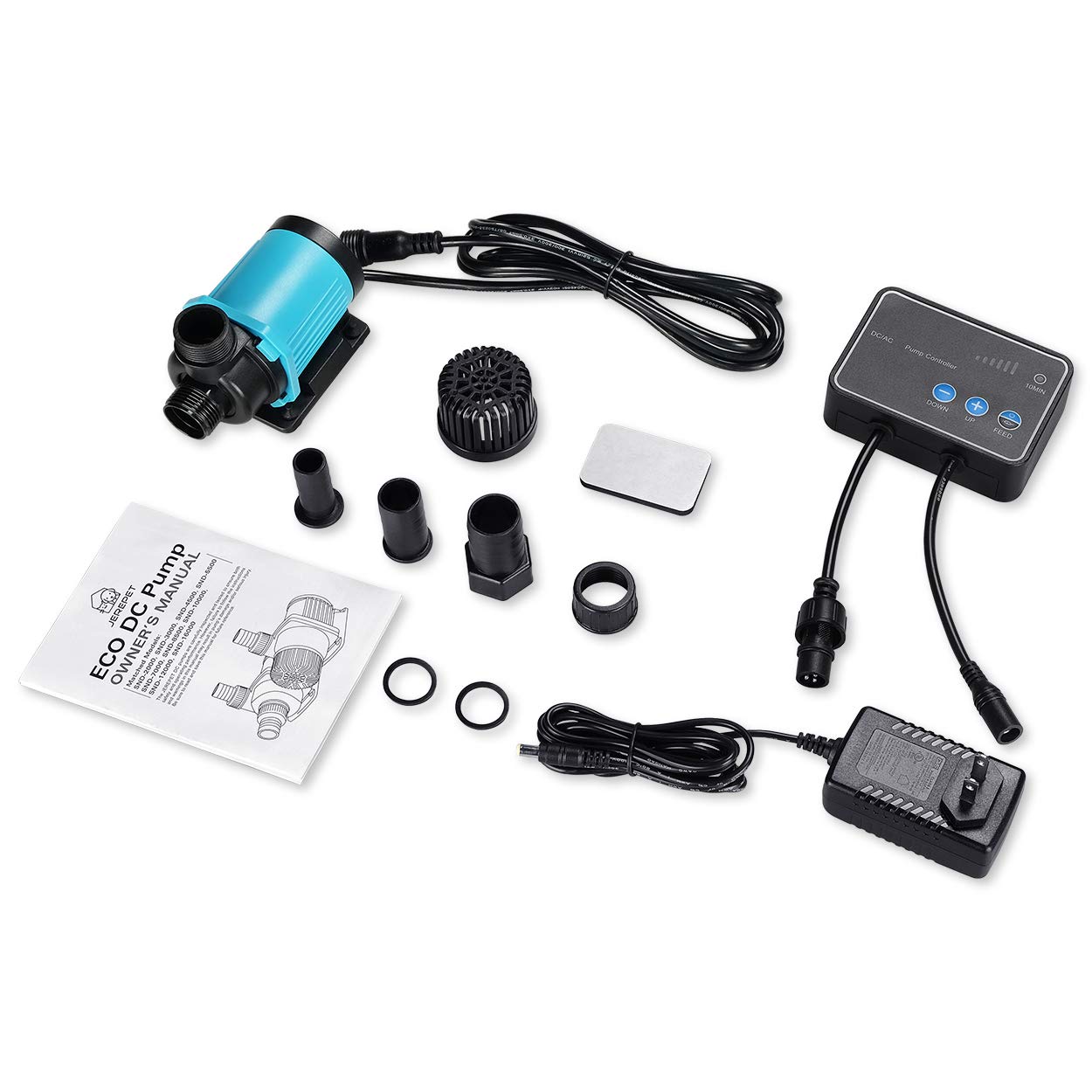

Designed for quiet operation and dependable safety, the pump uses a sealed impeller and ceramic shaft to keep noise levels low, typically under 30 dBA. The bundled controller adds precise flow management and convenience features, including multiple speeds, a 10-minute feeding mode, and a wave maker option to create brief, gentle current bursts for dynamic water movement.

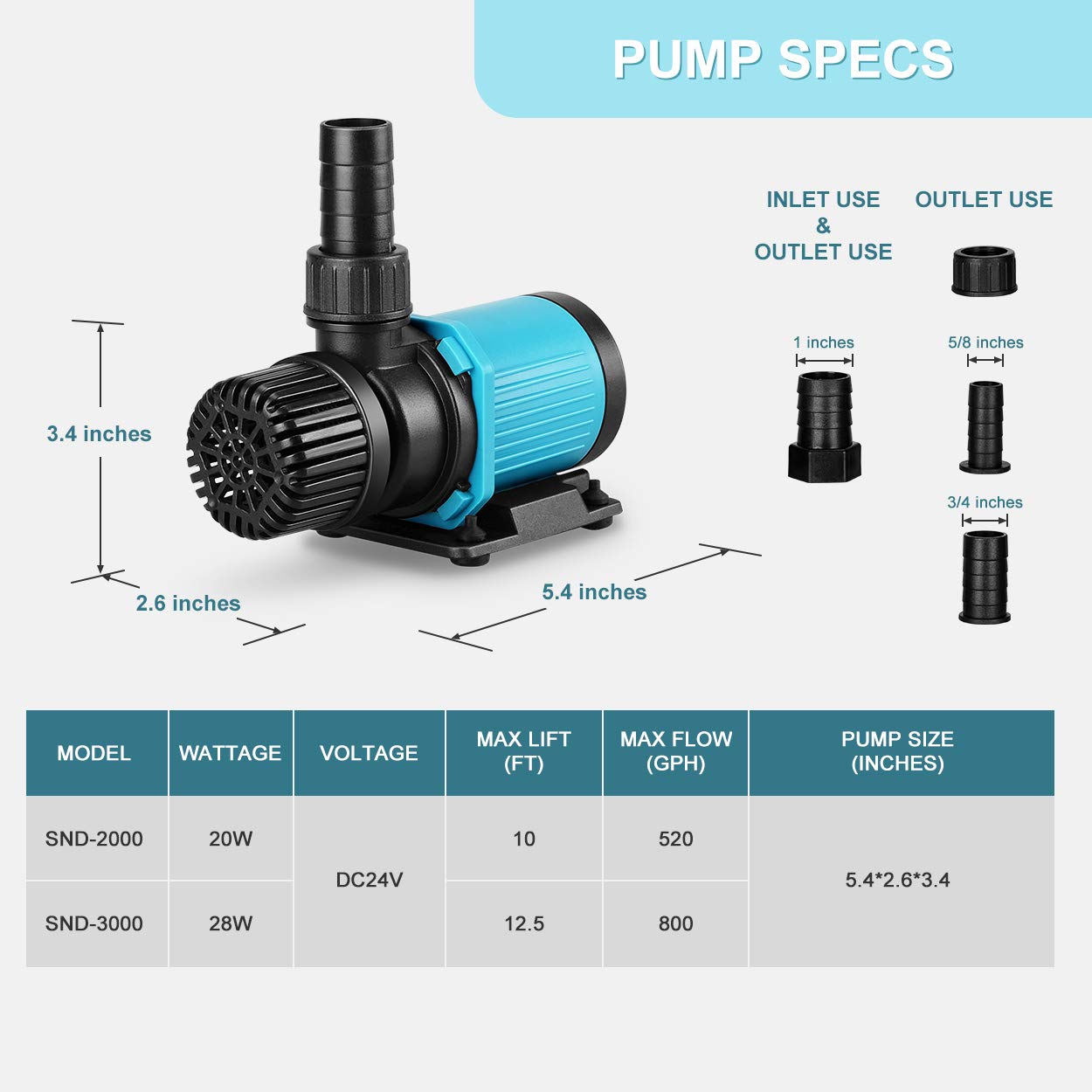

Key specifications

• 520 GPH max flow at 0 ft lift with the largest nozzle
• DC 24V operation, 20W power consumption
• Maximum lift about 10 ft
• Dimensions roughly 5.4 x 2.6 x 3.4 inches
• 6-speed adjustable flow from 30% to 100%
• Built-in auto shut-off when the pump runs dry or is blocked

What makes it useful

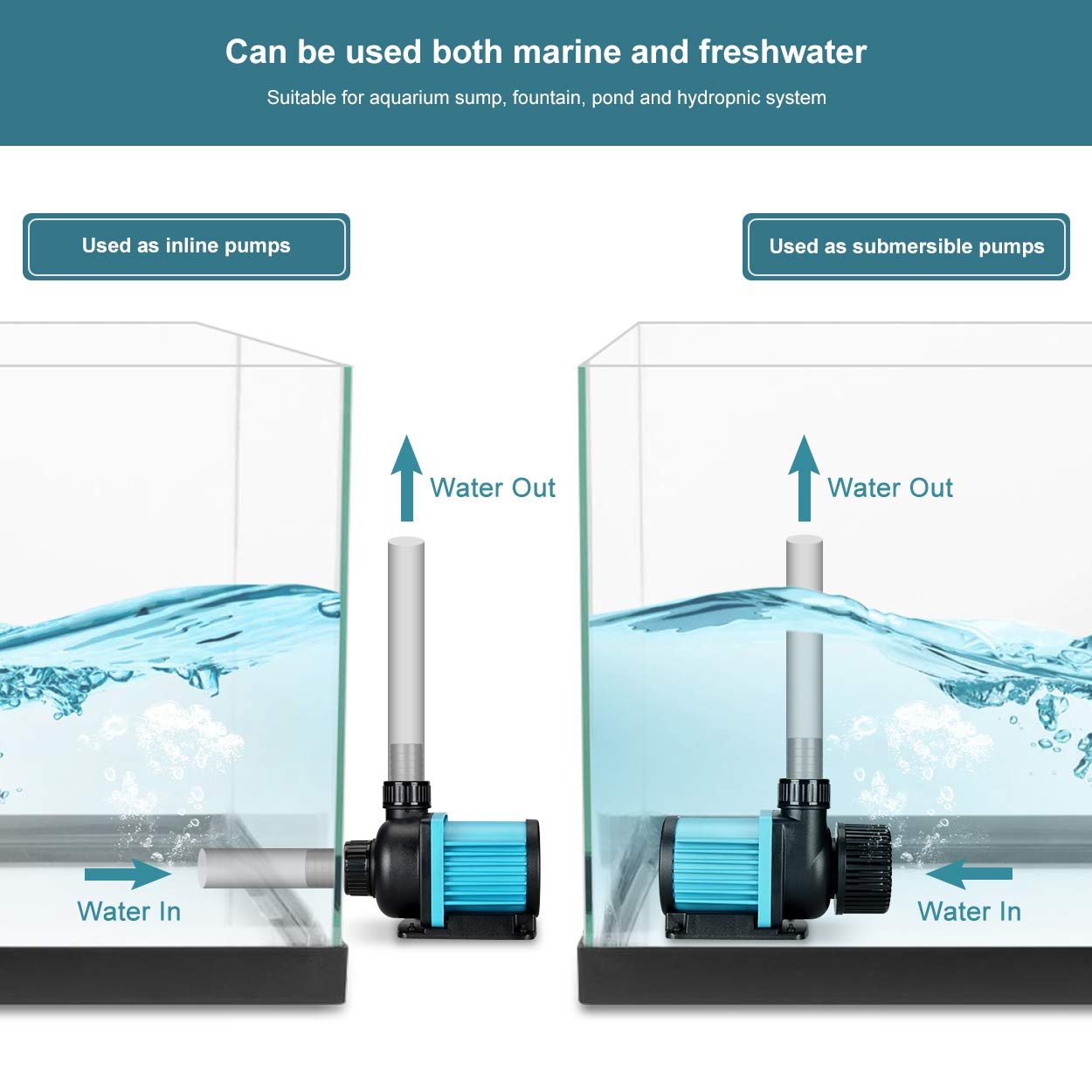

• Great for nano reef, freshwater, or saltwater setups with flexible mounting as submersible, inline, or external return
• Quiet performance supports in-tank or outdoor installations without distraction
• Feeding mode helps control flow during feeding times, while the wave maker adds intermittent movement

Practical setups and safety

Common uses include return lines for sumps, fountain displays, hydroponics reservoirs, and pond features. Always check the controller light and power supply if the pump isn’t operating, and follow the manual for reference. The design prioritizes protection against dry running and blockages, offering peace of mind during longer sessions.

Maintenance tips

• Inspect impeller and shaft periodically for smooth operation
• Keep intake clear of debris to minimize clogging
• Regularly verify 24V power and controller status for reliable performance
